DC Motor Drive

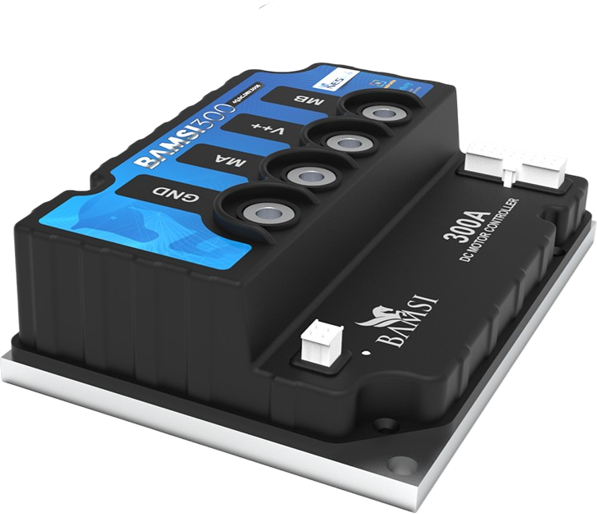

BAMSI 300
4Q brushed DC / series-excited DC motor drive. 300 A rated, 450 A peak; flagship of the Bamsı series for heavy-duty forklifts and warehouse equipment.
300A Rated Current
450A Peak Current
12–72V Voltage
4Q Topology
This drive is for brushed DC motors only.
CONFIGURATION & QUOTE
Configure your unit
First pick the voltage class. Then choose either Watt or Current — the other fills in automatically. Then set communication and quantity and fill the quote form.
Choose either Watt or Current — the other fills in automatically
Product Code — make a selection —
Complete the configuration first
Select voltage, power/current and communication; the quote form will appear here.
Request a Quote
✓
Thank you!
Your request has been received. We sent you a confirmation e-mail and notified our team. We will get back to you within 24 hours.
Key Features
Brushed DC
4-quadrant drive for brushed DC and series-excited DC motors.
Wide Current Range
Reliable drive from light to heavy load with rated current classes.
Multi-layer Protection
Overcurrent, over-temperature, reverse polarity, short circuit — built-in protection.
Made in Türkiye
Designed and manufactured in Kayseri. Engineering support from the same team.
Technical Specifications
ProtocolModbus and CANopen
InterfaceRS232 / CANBus / RS485
Operating Voltage12–72V DC
Rated Current (RMS)300 A
Peak Current (RMS)450 A
Matching MotorsBrushed DC / Series Excited DC
Digital Inputs5
Analog Inputs2
Digital Outputs2
FeedbackEncoder (Optional)
Brake Output0
Temperature Range-10 °C / +40 °C
STO (Safe Torque Off)—
Topology4 Quadrant (4Q)
